| • Based on Intel G41 platform |
|
|
| Intel |
| Модель |
|
|
|
| Тип процессора |
Intel Core2 multi core processors |
Intel Core2 multi core processors |
Intel Core2 multi
core processors |
| Разъем ЦП |
LGA775 |
LGA775 |
LGA775 |
| QPI/FSB |
1333/1066/800MHz |
1333/1066/800MHz |
1333/1066/800MHz |
| Чипсет |
Intel G41+ICH7 |
Intel G41+ICH7 |
Intel G41+ICH7 |
| Встроенная графика |
- |
Intel GMA X4500 |
Intel GMA X4500 |
| Графический интерфейс |
1*PCI-E x16 slot |
1*PCI-E x16 slot |
1*PCI-E x16 slot |
| Тип ОЗУ |
Dual-Channel DDR3
1066/800 |
Dual-Channel DDR3
1066/800 |
Dual-Channel DDR3
1066/800 |
| Кол-во DIMM-разъемов (объем ОЗУ) |
2*DDR3 (Max 8GB) |
2*DDR3 (Max 8GB) |
2*DDR3 (Max 8GB) |
| Разъемы для плат расширения |
3*PCI-Ex1 +3*PCI |
2*PCI-Ex1 +1*PCI |
2*PCI-Ex1 +1*PCI |
| Разъемы ATA |
4*SATA 3Gb/s +1*PATA |
4*SATA 3Gb/s |
4*SATA 3Gb/s |
| SATA RAID-массив |
- |
- |
- |
| Порты USB-интерфейса |
8*USB2.0 |
8*USB2.0 |
8*USB2.0 |
| Audio |
8-channel HD |
8-channel HD |
8-channel HD |
| Порты интерфейса IEEE1394 |
- |
- |
- |
| Сетевой контроллер |
GbE LAN |
GbE LAN |
GbE LAN |
| Фирменные функции |
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready |
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready |
On/Off Charge, Ultra Durable 2,4 phase power,USB 3x power,
50000hrs solid capacitors for CPU VRM
108dB SNR Blu-ray, ErP Ready
|
| Форм-фактор (габариты, мм) |
mATX (305x194) |
mATX (244x194) |
mATX (244x194) |
| Intel |
| Model |
|
|
|
| CPU Support |
Intel Core2 multi core processors |
Intel Core2 multi core processors |
| CPU Socket |
LGA775 |
LGA775 |
| QPI/FSB |
1333/1066/800MHz |
1333/1066/800MHz |
| Chipset |
Intel G41+ICH7 |
Intel G41+ICH7 |
| Onboard Graphics |
Intel GMA X4500 |
Intel GMA X4500 |
| Graphics Interface |
1*PCI-E x16 slot |
1*PCI-E x16 slot |
| Memory Type |
Dual-Channel DDR3
1066/800 |
Dual-Channel DDR3
1066/800 |
| Memory DIMM |
2*DDR3 (Max 8GB) |
2*DDR3 (Max 8GB) |
| Expansion Slots |
2*PCI-Ex1 +1*PCI |
2*PCI-Ex1 +1*PCI |
| ATA connector |
4*SATA 3Gb/s |
4*SATA 3Gb/s +1*PATA |
| SATA RAID |
- |
- |
| USB |
8*USB2.0 |
8*USB2.0 |
| Audio |
8-channel HD |
8-channel HD |
| 1394 |
- |
- |
| LAN |
GbE LAN |
GbE LAN |
| Features & Software |
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready |
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready |
| Form Factor (mm) |
mATX (244x194) |
mATX (244x194) |
|
For Intel Platform

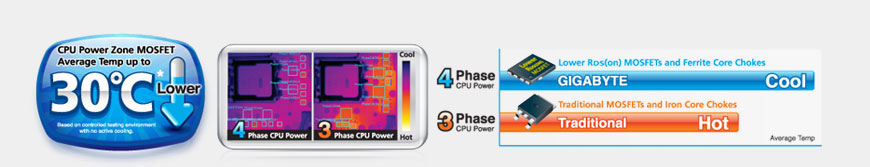

* For the most accurate thermal readings, GIGABYTE engineers compared a traditional motherboard (3 phases, iron-core chokes, non Lower RDS(on) MOSFETs) to a GIGABYTE Ultra Durable™2 motherboard with 4 power phases, Ferrite Core Chokes and Lower RDS(on) MOSFETs in a controlled testing environment, where current was supplied to the VRM and temperature readings were taken at various component points.
|
|
| • Based on NVIDIA platform |
|
|
|
| AMD |
| Модель |
|
|
|
| Тип процессора |
AMD AM3 PhenomII/ AthlonII CPU |
AMD AM3 PhenomII/ AthlonII CPU |
AMD AM3 PhenomII/ AthlonII CPU |
| Разъем ЦП |
AMD Socket AM3 |
AMD Socket AM3 |
AMD Socket AM3 |
| QPI/FSB |
2000MT/s (HT1.0) |
2000MT/s (HT1.0) |
2000MT/s (HT1.0) |
| Чипсет |
NV nForce 520LE |
NV GeForce 7025/ nForce 630a |
NV GeForce 7025/ nForce 630a |
| Встроенная графика |
- |
NV CineFX 3.0 (DX9) |
NV CineFX 3.0 (DX9) |
| Графический интерфейс |
1*PCI-E x16 slot |
1*PCI-E x16 slot |
1*PCI-E x16 slot |
- |
RGB port |
RGB port |
| Тип ОЗУ |
Dual-Channel DDR3
1666+/1333/1066 |
Dual-Channel DDR3
1333+/1066 |
Dual-Channel DDR3
1333+/1066 |
| Кол-во DIMM-разъемов (объем ОЗУ) |
4*DDR3 (Max 16GB) |
2*DDR3 (Max 8GB) |
2*DDR3 (Max 8GB) |
| Разъемы для плат расширения |
2*PCI-Ex1 + 4*PCI |
2*PCI-Ex1 + 1*PCI |
2*PCI-Ex1 + 1*PCI |
| Разъемы ATA |
2*SATA 3Gb/s + 1*PATA |
4*SATA 3Gb/s |
4*SATA 3Gb/s |
| SATA RAID-массив |
0, 1 (nForce 520LE) |
0, 1, 5, 10
(GeForce 7025/ nForce 630a) |
0, 1, 5, 10
(GeForce 7025/ nForce 630a) |
| Порты USB-интерфейса |
8*USB2.0 |
10*USB2.0 |
10*USB2.0 |
| Audio |
8-channel HD |
8-channel HD |
8-channel HD |
| Порты интерфейса IEEE1394 |
- |
- |
- |
| Сетевой контроллер |
10/100 LAN |
GbE LAN |
GbE LAN |
| Фирменные функции |
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, All 50000hrs solid capacitors, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready |
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, All 50000hrs solid capacitors, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready |
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, 50000hrs solid capacitors for CPU VRM, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready |
| Форм-фактор (габариты, мм) |
ATX (305x216) |
mATX (244x206) |
mATX (244x206) |
|
For AMD Platform :
*

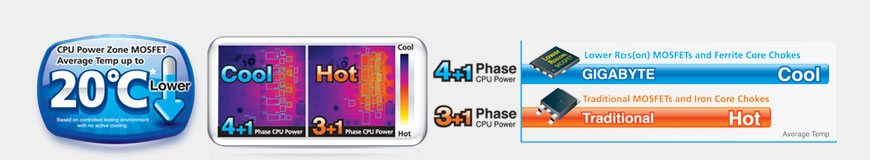

For the most accurate thermal readings, GIGABYTE engineers compared a traditional motherboard (3+1 phases, non Lower RDS(on) MOSFETs) to a GIGABYTE Ultra Durable™2 motherboard with 4+1 power phases and Lower RDS(on) MOSFETs in a controlled testing environment, where current was supplied to the VRM and temperature readings were taken at various component points. |
|
| |
|
